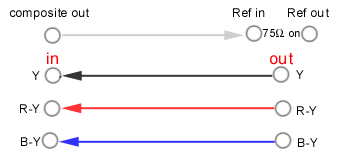

Using a component player for capturing, set the Digisuite to internal sync and follow the diagram!

Matrox Digisuite

Component Player

Using a component recorder for capturing and record to tape, set the Digisuite to internal sync and follow the diagram! All 7 cables must be connected at all times.

Matrox Digisuite

Component VTR

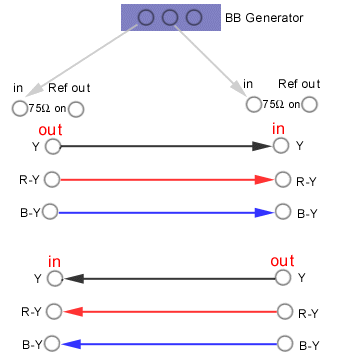

Using a high quality Black Burst Generator, set the DS to external broadcast sync and follow the diagram!

Matrox Digisuite

Component VTR
