Making Multimedia AVI's in almost realtime!



Note: This tutorial maybe outdated for the current version of Virtual Dub

See also  Virtual Dub - Downscaling HD to SD (current tutorial)



Yes, the free software encoder from Virtual Dub makes it possible to encode from native Matrox avi and wav to Multimedia avi in real or almost real time at full frame rate and excellent quality with all the filters you could possibly need! (Win98, NT4, Win2k)



Step1

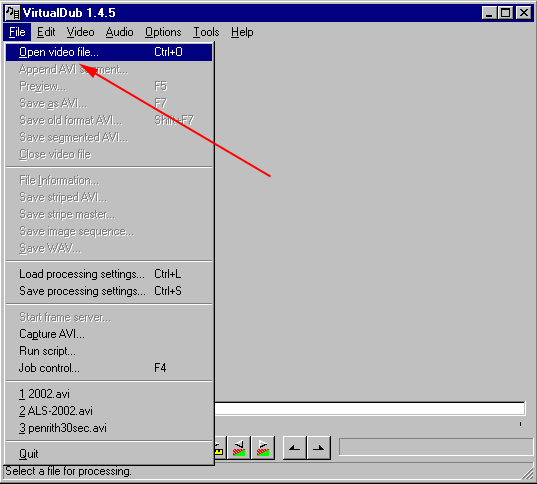

Open the Matrox.avi or any other type of native avi



Step2
From the audio menu, set as shown and browse for the audio file by clicking the wav link



Step3

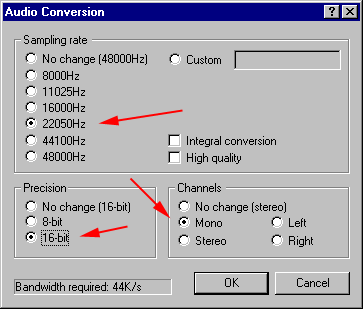

On the audio menu, choose conversion



Step4
Set as shown, unless your client has a powerful computer



Step5

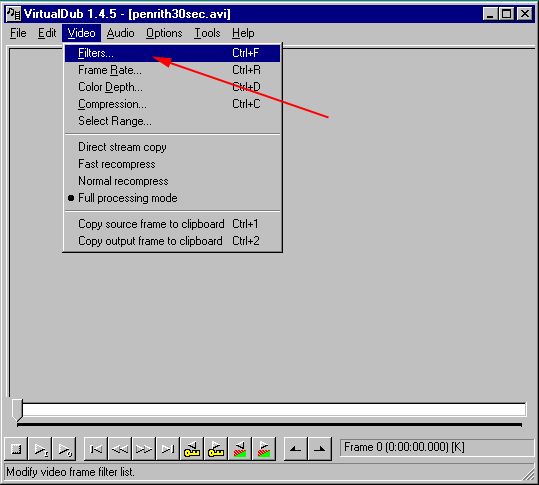

Choose Filters from the video menu



Step6

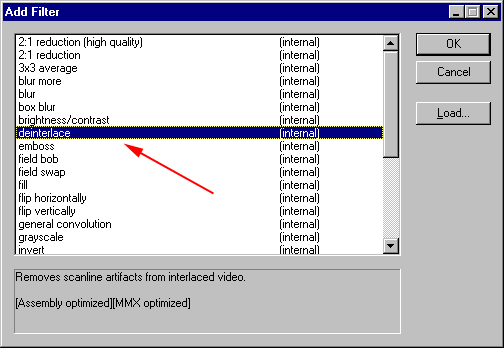

Click the add button and choose de-interlace



Step7
Double click to configure as shown



Step8

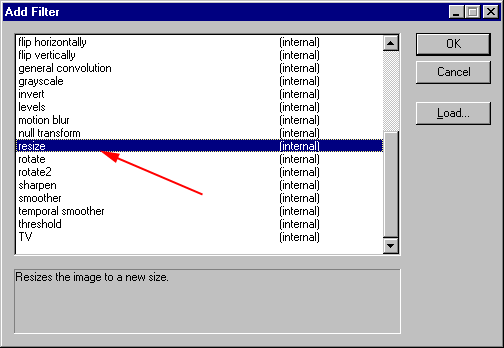

Add a resize filter



Step9
Double click to configure as shown, or larger depending on the speed of the computer



Step10

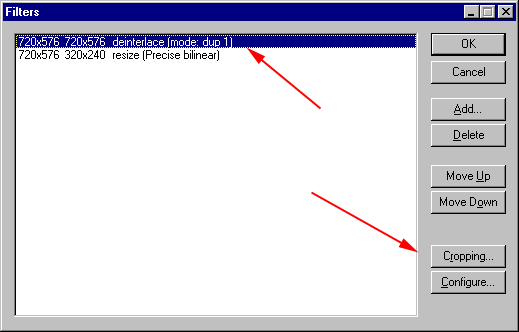

Highlight the de-interlace filter and click cropping



Step11

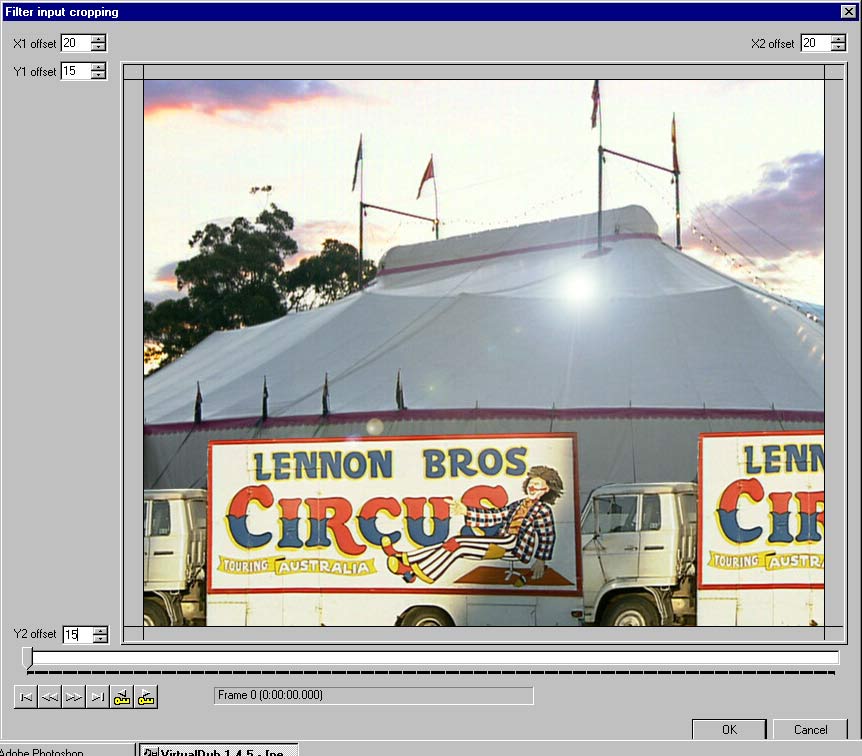

Crop as shown as a minimum, as this area would not normally be seen on a TV



Step12
From the video menu, choose compression



Step13

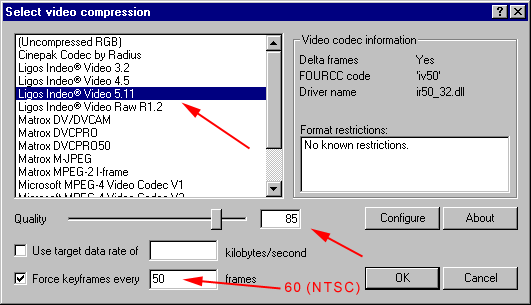

In this example, I use Indeo 5.11 at 85% quality



Step14

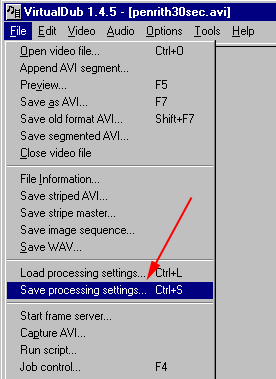

Save your configuration as Indeo320x240, this way next time you only need to load the file



Step15
Choose file, save as avi



Step16

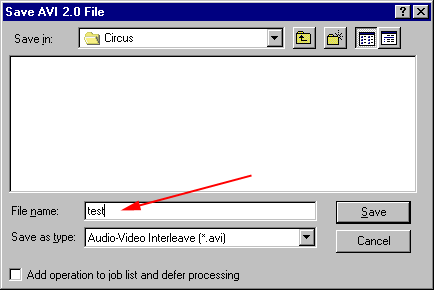

Type a file name



Step17

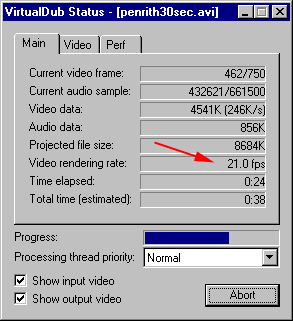

Sit back and watch it encode at almost realtime, in this case 21 frames per sec





Using Virtual Dub as a Frame Server!



Virtual Dub can also be used as a frame server in conjunction with TMPEG, this will allow you to make Mpeg1 and Mpeg2 files with no file size limit (The latest paid version of TMPGEnc has no issues with file size limits, the following steps are not needed)



Note: You need to double click the file AuxSetup.exe in order to install the frame server



Step1
Open the Matrox.avi or any other type of native avi



Step2
From the audio menu, set as shown and browse for the audio file by clicking the wav link



Step3

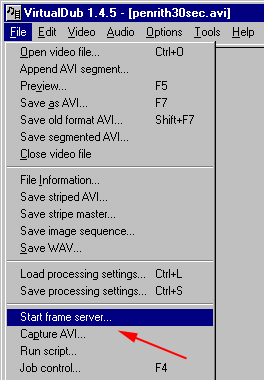

From the file menu, choose start frame server



Step4
Leave the file name as is and press start



Step5

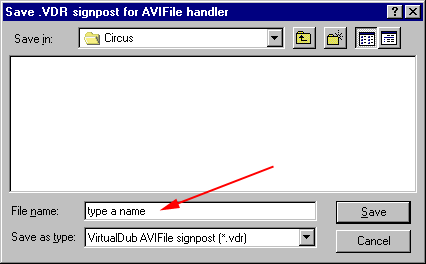

Type a name for the signpost and remember the location



Step6

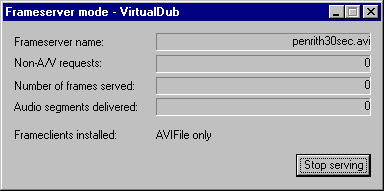

The frame server is now running, ready to deliver enough to fill a 650 MB CD-R



Step7

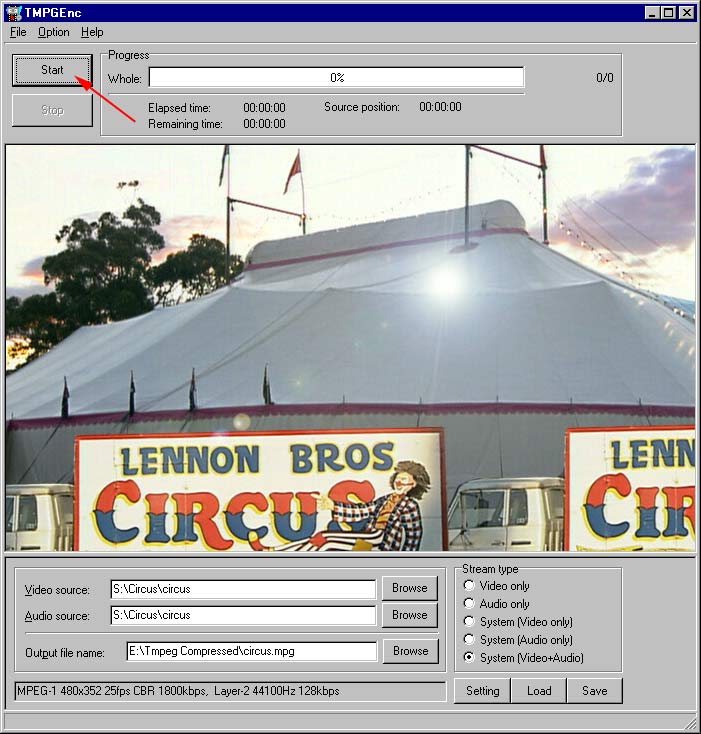

Open TMPEG and Windows Explorer, drag the signpost from Explorer to TMPEG and configure your mpeg1 or mpeg2 and press start.



Mpeg1 encoding speed: 1 min will take 4 min
Mpeg2 encoding speed: 1 min will take 6 min



(based on Dual PIII 600 with 1048MB Ram)



TPMEG Basic Tutorial
